MJOPTC MJ8809 Industrial camera lens for EFL8.2 F1.8 1/1.8″ M12
Applicable to: CCTV LENS, driving recorder, reversing image, access control system, smart home, 1.8-inch large target surface, industrial camera.
|
Serial number |
Item |
Value |
|
1 |
EFL |
8.2 |
|
2 |
F/NO. |
1.8 |
|
3 |
FOV |
58° |
|
4 |
TTL |
30 |
|
5 |
Sensor Size |
1/1.8”,1/2”,1/2.3”,1/2.5”,1/2.7”,1/2.8”,1/2.9”,1/3 |
Driving Recorder

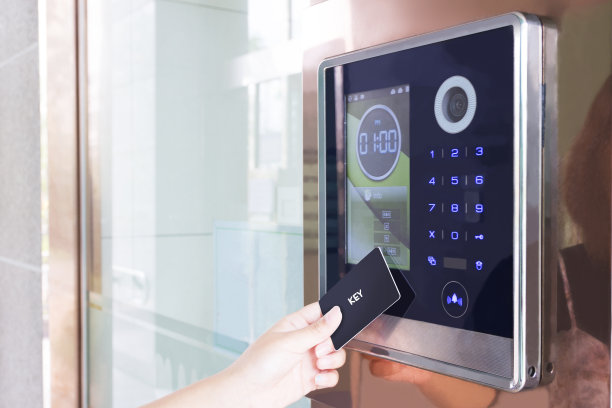

Smart access control
1. High-tech automation equipment
Our door has a variety of sophisticated equipment to assist our production. The equipment is customized and purchased by professional manufacturers. Sensitive monitoring devices can accurately detect any problems with our products. The foolproof system can ensure that we do not appear in the production process. Errors, thereby greatly improving the quality of the product and the efficiency of production.
2. Raw material inspection standards
All raw materials can only flow into production after being tested by the relevant inspection department. We adopt the MIL-STD-105E single normal sampling standard to adopt the appearance of level II, and the specifications and functions to adopt the S-2 level of incoming material inspection specifications.
3. High precision tolerance control
At present, important optical dimensions can be accurate to the following specifications: the tolerance of the outer diameter of the lens can reach ±0.005mm; the aperture/irregularity can reach -3/0.5; the optical axis can be accurate to 30". The center thickness of the lens can reach ±0.01mm. Metal parts With military production precision machinery equipment, the tolerance can be controlled within ±0.005mm.
1/1.8” large target surface series, no distortion, large wide-angle 140︒, industrial camera, drone aerial photography, cloud platform camera, driving recorder, high-end surveillance field, etc., is your best choice.
